CASE STUDY: 06
Resolving DTC P0341 (Camshaft Position Sensor – Range/Performance)

  1. Vehicle Details

    • Make / Model: Volkswagen Polo

    • Year: 2011–2012

    • Engine: 1.2 TDI, 3-cylinder, Common Rail

    • Engine Code: CFWA

    • ECU: Bosch EDC17

    • Mileage: High (typical wear conditions)

    1. Customer Complaint

    • Intermittent MIL ON and flashing glow-plug (coil spring) warning

    • Reduced engine power (limp mode at times)

    • Occasional rough idle / hesitation

    • Fault codes returning after restart even when temporarily cleared

    2. Fault Codes Observed

    Primary and repeated DTC:

    • P0341 – Camshaft Position Sensor (G40): Range / Performance

    Associated / historical faults observed during diagnosis:

    • P2563 – Turbocharger Boost Control Position Sensor (G581)

    • Intermittent injector circuit fault (Injector 2)

    3. System Description (Relevant to P0341)

    The CFWA engine uses:

    • Crankshaft speed sensor (G28) – engine speed and reference

    • Camshaft position sensor (G40) – phase reference and synchronization

    • Reluctor / trigger wheel mounted on camshaft pulley hub

    The ECU continuously compares:

    • Crankshaft signal phase

    • Camshaft signal phase

    If correlation exceeds a calibrated tolerance window → P0341 is stored.

    4. Initial Checks Performed

    4.1 Electrical Checks

    • Verified 5 V reference, ground, and signal integrity at G40

    • No wiring open/short found

    • Sensor replaced once (preventive) – fault remained

    4.2 Live Data Comparison

    • Crankshaft RPM and camshaft RPM matched numerically

    • However, ECU still flagged range/performance error, indicating a phase or profile issue, not a missing signal

    5. Mechanical Investigation

    5.1 Timing Belt Verification

    • Timing belt removed and refitted using correct locking tools

    • Crankshaft and camshaft mechanical timing verified

    • No tooth jump or belt slip found

    5.2 Camshaft Pulley & Trigger Assembly Inspection

    During deeper inspection:

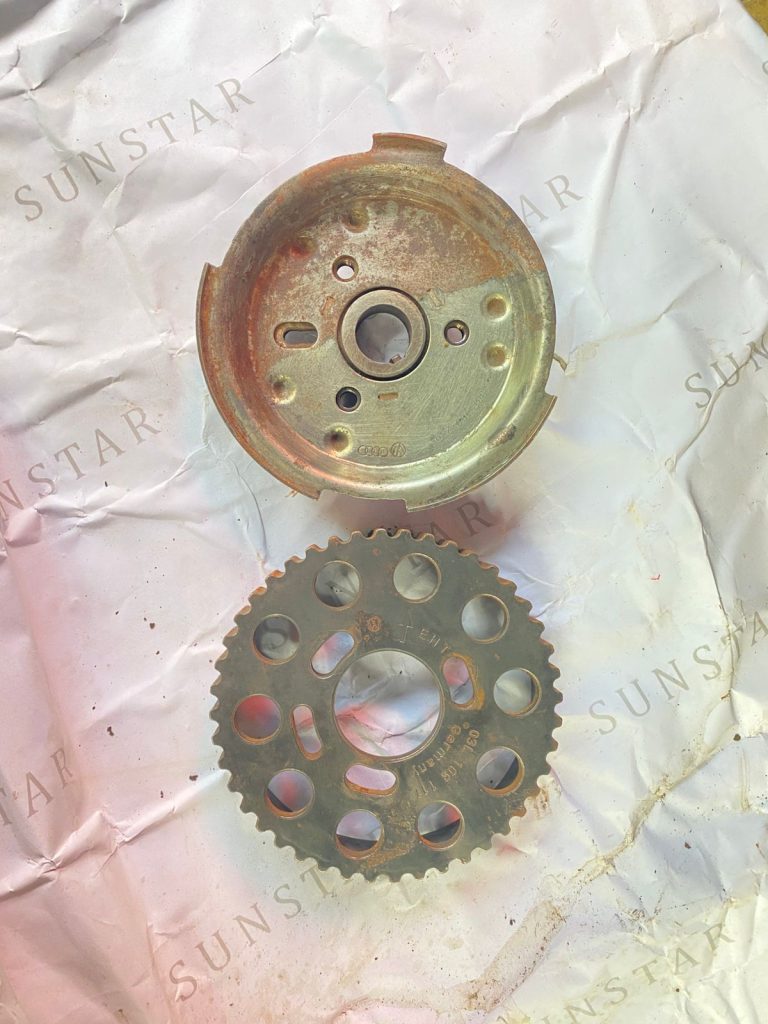

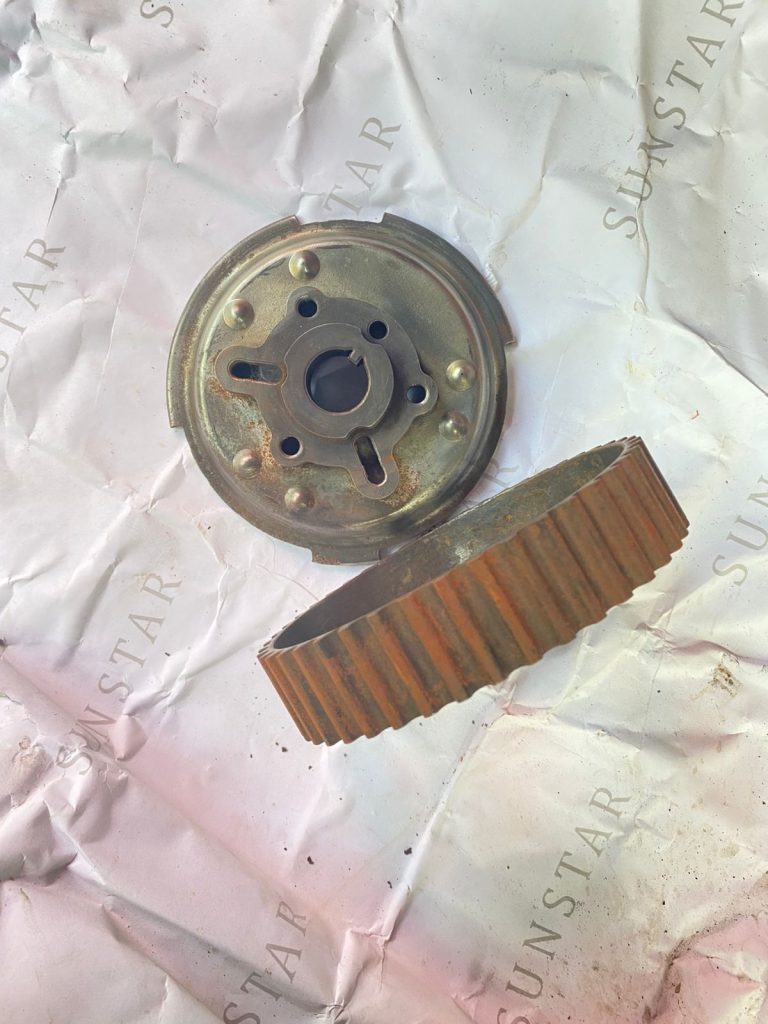

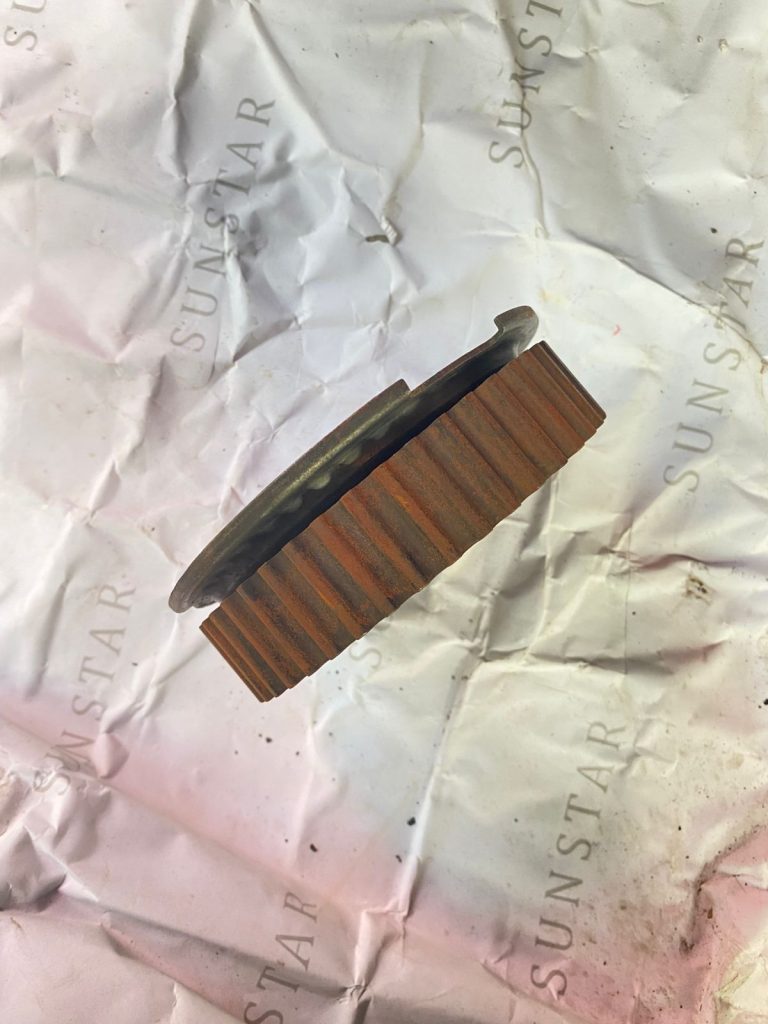

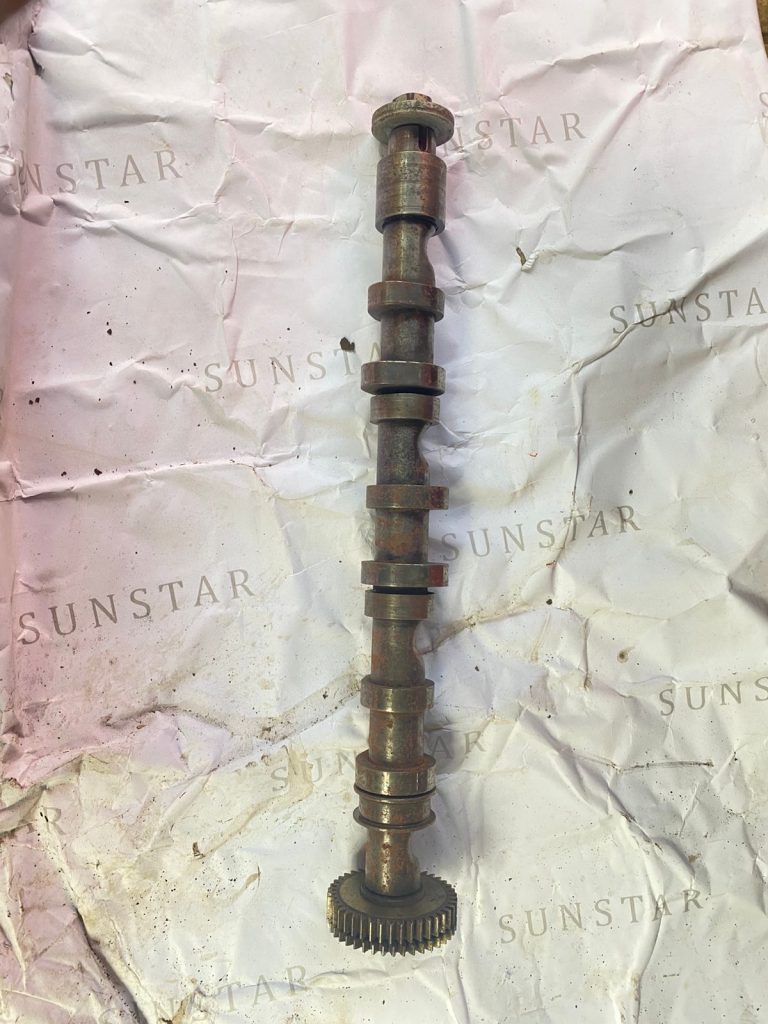

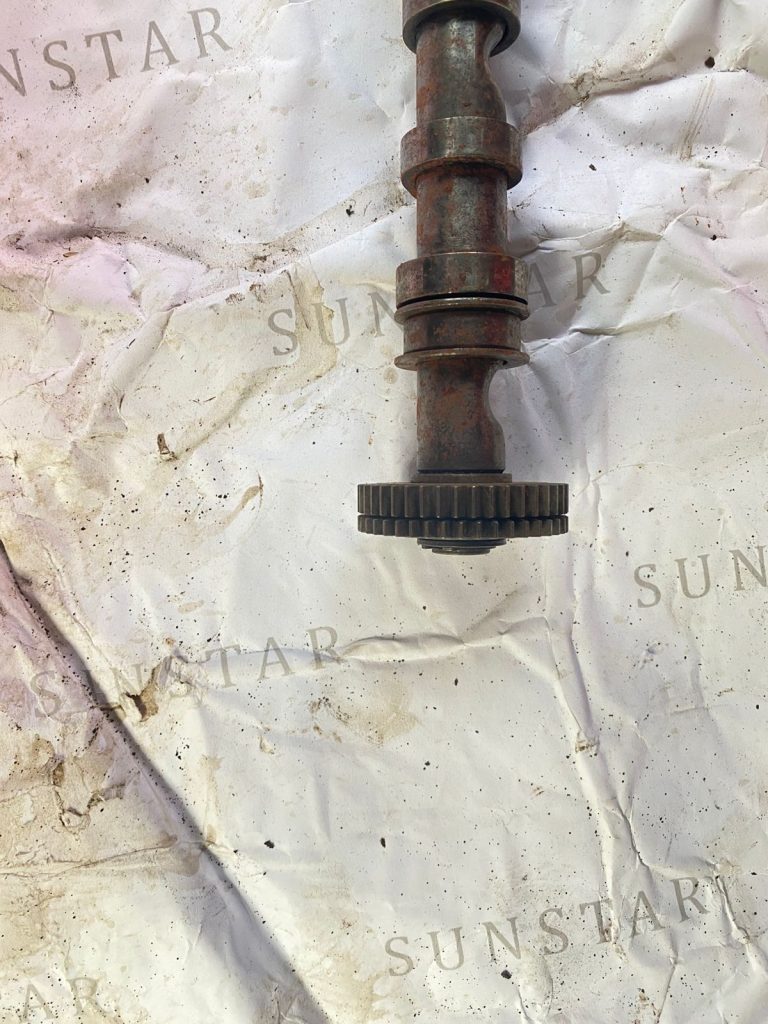

    • Camshaft pulley assembly removed

    • Found multi-part design consisting of:

      • Timing belt pulley

      • Steel trigger wheel (reluctor)

      • Plastic spacer / carrier between pulley and trigger wheel

    5.3 Critical Finding

    • Plastic spacer was cracked and partially disintegrated

    • Trigger wheel position had shifted minutely relative to camshaft

    • This caused cam signal phase drift, especially when hot or under load

    ⚠ Even a small angular shift is enough to trigger P0341

    6. Why the Fault Was Intermittent

    • At cold start: correlation acceptable

    • After warm-up / load changes: plastic carrier deformation increased

    • ECU detected cam/crank phase drift → P0341

    • Clearing codes temporarily restored normal operation until drift reappeared

    7. Corrective Action

    7.1 Mechanical Repair

    • Camshaft pulley / hub assembly replaced with correct OEM-spec parts

    • Trigger wheel correctly indexed and clamped

    • All mating surfaces cleaned

    7.2 Reassembly

    • New timing belt installed

    • Correct torque sequence followed

    • Oil seal inspected and renewed

    7.3 ECU Procedures

    • Fault memory cleared

    • Basic settings / adaptation reset (where applicable)

    • Engine allowed to idle and reach operating temperature

    8. Verification & Results

    • Engine started normally

    • No MIL or glow-plug warning

    • Multiple hot and cold restarts tested

    • Extended road test completed

    • P0341 did not return

    Live data confirmed:

    • Stable cam/crank synchronization

    • No phase deviation during acceleration or deceleration

    9. Final Root Cause

    Mechanical misalignment of camshaft trigger wheel due to failure of the plastic spacer inside the camshaft pulley assembly.

    This caused:

    • Camshaft signal timing outside ECU tolerance

    • Persistent P0341 despite correct sensor and wiring

    10. Key Learnings (For Technicians)

    • P0341 is not always a sensor fault

    • Matching RPM values do not guarantee correct phase correlation

    • Multi-piece cam pulleys with plastic carriers are a known weak point

    • Always inspect mechanical signal generation, not just electronics

    11. Diagnostic Tips

    • If P0341 persists after sensor replacement:

      • Inspect camshaft pulley construction

      • Check for plastic carriers, spacers, or bonded trigger wheels

      • Look for heat-related deformation

    12. Conclusion

    This case highlights the importance of mechanical integrity in modern engine management systems. Advanced diagnostics and persistence led to a successful resolution of a fault that initially appeared electronic but was ultimately mechanical in nature.
